nd100x

Tested Systems

This document lists all the systems where nd100x has been tested

x64

Ubuntu 22.04.5 LTS

• Environment: Windows Subsystem for Linux (WSL) and Virtual Machine
• Status: ✅ Tested and Verified
• Notes:
  • Fully compatible with all features
  • Performance optimized for both WSL and VM environments

FreeBSD 14.2-RELEASE

• Environment: Native FreeBSD installation
• Status: ✅ Tested and Verified
• Specifications:
  • Version: 14.2-RELEASE
  • Branch: releng/14.2-n269506-c8918d6c7412
  • Kernel: GENERIC
  • Architecture: amd64
• Notes:
  • Native FreeBSD support
  • No external dependencies required
  • Uses internal cJSON implementation
  • Compatible with all core features

WebAssembly (WASM)

Browser Environment

• Type: Web-based runtime
• Architecture: WebAssembly
• Status: ✅ Tested and Verified
• Specifications:
  • Runtime: Browser-based WASM engine
  • Memory: Linear memory model
  • Execution: Sandboxed environment
• Notes:
  • Cross-platform compatibility
  • Secure execution environment
  • Near-native performance
  • Browser-based deployment
• Links:
  • WebAssembly.org
  • MDN WebAssembly Documentation

RISC-V

Milk-V Duo

• Type: Ultra-compact embedded system
• Architecture: RISC-V
• Status: ✅ Tested and Verified
• Specifications:
  • SoC: CVITEK CV1800B
  • CPU: Dual-core RISC-V C906 (1GHz + 700MHz)
  • MCU: 8051 with 8KB SRAM
  • Memory: 64MB SIP DRAM
  • TPU: 0.5TOPS@INT8
  • Storage: 1x microSD connector or 1x SD NAND on board
  • USB: 1x Type-C for power and data, USB Pads available
  • Camera: 1x 16P FPC connector (MIPI CSI 2-lane)
  • Sensor Support: 4M@25fps
  • Ethernet: 100Mbps ethernet with PHY
  • GPIO: Up to 26x GPIO Pads
  • Power: 5V/1A
  • OS Support: Linux, RTOS
  • Dimensions: 21mm x 51mm
• Notes:
  • Ultra-compact form factor
  • RISC-V architecture support
  • Embedded system capabilities
  • Compatible with Raspberry Pi interfaces
  • Open-source chip data
• Links:
  • Official Website
  • Documentation

ARM

Raspberry Pi 3B

• Type: Single-board computer
• Architecture: ARM Cortex-A53
• Status: ✅ Tested and Verified
• Specifications:
  • 1.2GHz quad-core ARM Cortex-A53
  • 1GB RAM
  • 40 GPIO pins
• Notes:
  • Excellent for embedded projects
  • Wide community support
  • GPIO interface available
• Links:
  • Official Website
  • Documentation

System Images

RISC-V

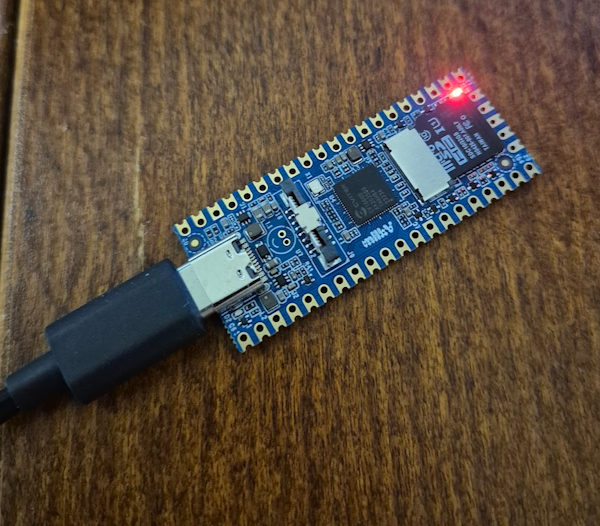

Milk-V Duo embedded system

ARM

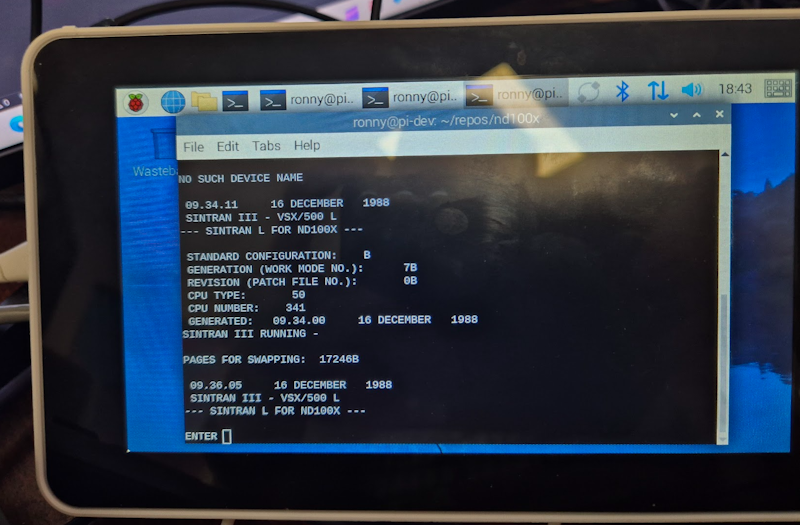

Raspberry Pi 3B single-board computer

WebAssembly

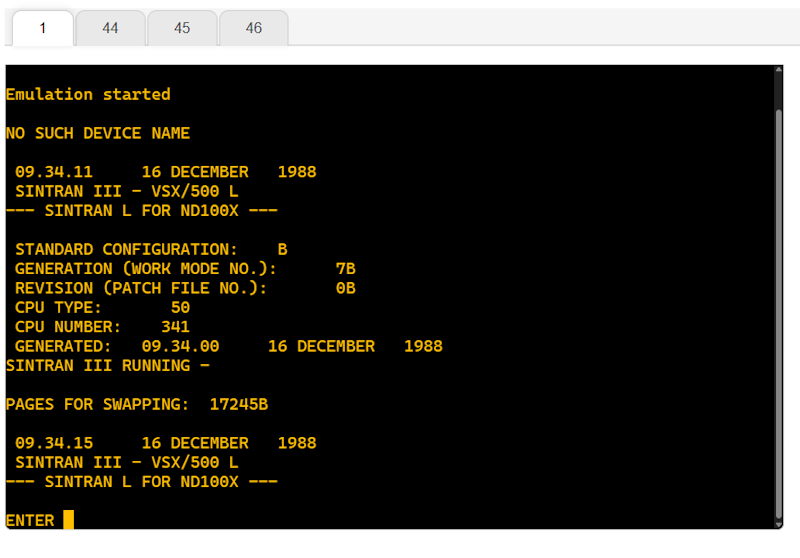

WebAssembly runtime environment

---

Note: This document will be updated as more systems are tested.
